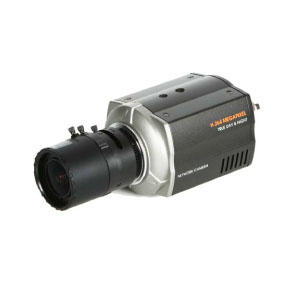

| EZIC-IGA20 |
-H.264 & MJPE G HD Network Camera
-Dual Steam
-2MP (1080P) @ 30FPS
-Triple Power. DC12V, 24VAC, PoE
-Analog Hybrid Output
-Motion Triggered Alarm
-Multi Language GUI support
-True Day & Night
-ONVIF Compliant
-2D/3D DNR
-SDHC Card
-BNC output
-Compatible with EZIP NDVR
-Lens is not included
|
  |
|
|
|
|
| Model |
EZIC-IGA20 |
| CAMERA |
| Image Sensor |
1/2.8" Sony IMX-036 CMOS Sensor |
| Max. Resolution |
1920 x 1080 |
| Effective Pixels |
2096(H) x 1561(V) |
| Effective Image Size |
5.24mm(H) x 3.90mm(V), 6.53mm(Diagonal) |
| White Balance |
ATW / MANUAL(PRESET) |
| Electronic Zoom |
2 ~ 10x(Client Software) |
| AGC |
Yes |
| BLC(Backlight compensation) |
Yes |
| Iris |
Motorized Iris / MANUAL / AES |
| Shutter Speed |
1/4, 1/10, 1/12.5, 1/15, 1/20, 1/25, 1/30, 1/50, 1/60, 1/100,
1/120, 1/240, 1/480, 1/960, 1/1024, 1/2000 s(TBD) |
| Slow Shutter |
2X(TBD) |
| Lens Mount |
CS/C(with Adaptor) |
| Day & Night |
Removable IR Cut Filter |
| S/N ratio |
50 dB or more(TBD) |
| Min. illumination |
Color: 0.7 lux(F1.2, 30IRE) - TBD |
| B/W: 0.08 lux(F1.2, Slow Shutter ON, 30IRE) - TBD |
| ANALOG (Installation Only) |
| Video Signal |
NTSC/PAL selectable |
| Monitor Output |
Composite Output(BNC), 75 ohm 1Vpp |
| Scanning Frequency |
NTSC: (H) 15.734 kHz, (V) 59.94 Hz
PAL: (H) 15.625 kHz, (V) 50 Hz |
| NETWORK |
| Network |
10BASE-T, 100BASE-TX, RJ45 |
| Image Compression |
H.264 : Main Profile |
MJPEG - Image quality: 5 Steps: Lowest, Low : Medium:
High, Highest |
| Resolution |
1920 x 1080(Full HD), 1280 x 1024(SXGA) |
| 1024 x 768(XGA), 1280 x 720(720p) |
| 640 x 480(VGA), 320 x 240(QVGA) |
| 704 x 480/576(4CIF), 352 x 240/288(CIF) |
| Protocol |
IPv4/6, HTTP, HTTPS, SMTP, UPnP, DNS, DynamicDNS,NTP,
RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP |
| Frame Rate |
1 fps ~ 25 fps / 1 fps ~ 30 fps(TBD) |
| Web Browser |
Internet Explorer 7.0 or above, Firefox, Chrome, PDA/Smart
phone |
| Security |
Password Protection, HTTPS, IP Addressing Filtering(TBD) |
| SDK(API) |
HTML based API |
| VMD(Video Motion Detection) |
User set 4 ROI(Region Of Interest) / 10 Step Sensitivity |
| Alarm Trigger |
VMD, External Alarm Input |
| Alarm Event |
E-mail notification, FTP transfer, Video stream with alarm
status, Post Alarm |
| AUDIO |
| In/Out |
Line in, Line out External Amplifier is needed |
| CODEC |
G.711 / 8K sampling(T BD) |
| POWER |
| Power Source |
DC12V 1A / 24VAC(50Hz/60Hz) 500mA
PoE(IEEE 802.3af compliant) |
| Power Consumption |
378mA @ DC12V, Max 4.6W(TBD)
300mA @ AC24V, Max 4.4W(TBD)
100mA @ PoE, Max 4.7W(TBD) |
| OTHER SPECIFICATIONS |
| Micro SD Card |
SDHC card compatible SanDisk,Transcend,Kingstone,Toshiba:
2G, 4G, 8G, 16G or more |
| Ext ernal I/O Terminals |
Alarm In x1, Alarm Out x1, Audio In x1, Audio Out x1 |
| Ambient Temperature |
-10° C ~ 50° C(14° F~122° F) |
| Ambient Humidity |
less than 90%, Non- condensing |
| Materials |
Aluminum Diecasting |
| Weight |
250g (Without Lens) |
| Dimensions(W x H x D) |
63.6(W) x 60.3(H) x 81.2(D) mm |
|
|
|
|
|
