| Model |

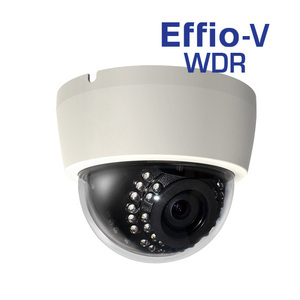

DKR-V455 |
| IMAGE SENSOR |
1/3" 960H SONY Double-Density Interline CCD |
| EFFECTIVE PIXEL |
976(H) x 494(V) |
| SCANNING SYSTEM |
2:1 Interlace |
| SYNCHRONIZATION |
Internal |
| HORIZONTAL RESOLUTION |
750TV Lines |
| VIDEO OUTPUT |
COMPOSITE (1.0Vp-p/75Ohm) |
| S/N (Y Signal) |
52dB (AGC off, Weight on) |
| Min. IlLUMINATION |
0.003Lux at F1.2(SENS-UP AUTO) |
| IRIS ADJUSTMENET |
AUTO / MANUAL |
| SCENE SELECT |
FULL AUTO / INDOOR / OUTDOOR / BACKLIGHT / ITS / CUSTOM |
| LENS |
2.8~12mm DC Auto Iris Lens (ICR) |
| ELECTRONIC SHUTTER |
(1/60~1/100,000)2FLD~256FLD |
| BACKLIGHT COMPENSATION |
OFF/ BLC / HSBLC |
| WHITE BALANCE |
ATW(1,800K ~ 10,500K)/PUHS/USER1,2/MANUAL/PUSH LOCK |
| DAY & NIGHT |
LEVEL Adjustment |
| AUTO GAIN CONTROL |
Day / AUTO1 / AUTO2 / Night |
| WDR |
LEVEL Adjustment |
| IR OPTIMIZER |
LEVEL Adjustment |
| PRIVACY MASKING |
On / Off (Programmable 15 zones) |
| DIS |
ON/OFF |
| DNR |
2DNR+3DNR(LEVEL Adjustment) |
| DEFOG |
LEVEL Adjustment |
| DIGITAL ZOOM |
OFF/ON (x1 ~ x256) |
| SENS UP |
AUTO |
| MOTION |
4 Regional MD |
| DIGITAL EFFECT |
OFF / V-FLIP / MIRROR / ROTATE |
| IR LED |
30 PCS |
| INPUT VOLTAGE |
DC 12V(±10%) / AC 24V(±10%) |
| POWER CONSUMPTION |
DC IR OFF : 130mA(±10%) / IR ON : 450mA(±10%)
AC IR OFF : 120mA(±10%) / IR ON : 350mA(±10%) |
| OPERATION TEMP / HUM |
-10° C~ +50° C / MAX 90% RH |
| STORAGE TEMP / HUM |
-20° C ~ +60° C / MAX 90% RH |
