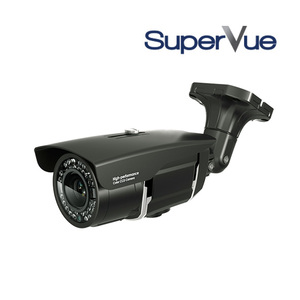

| Model |
BKRSP-L355 |
| IMAGE SENSOR |
1/3" 960H IT CCD |
| EFFECTIVE PIXEL |
976(H) x 494(V) |
| SCANNING SYSTEM |
2:1 Interlace |
| SYNCHRONIZATION |
Internal |
| HORIZONTAL RESOLUTION |
700TV Lines(MAX) |
| VIDEO OUTPUT |
COMPOSITE (1.0Vp-p/75Ohm) |
| S/N (Y Signal) |
52dB (AGC off) |
| LENS |
6~50mm Wide-Depth DC Auto Iris Lens (ICR) |
| ELECTRONIC SHUTTER |
1/60 ~ 120,000sec |
| BACKLIGHT COMPENSATION |
BLC / HSBLC / OFF |
| WHITE BALANCE |
ATW / PUSH / USER1 / USER2 / ANTI CR / MANUAL / PUSH LOCK |
| DAY & NIGHT |
COLOR / AUTO / B/W / EXT1 / EXT2 |
| PRIVACY MASKING |
ON/OFF (8 zones) |
| DNR |
OFF / LOW / MIDDLE / HIGH |
| SMART IR |
OFF / ON |
| SENS UP |
OFF / x1 ~ x512 |
| MOTION |
OFF / ON (4 POINTS) |
| DEFECT DET |
OFF / ON |
| IR LED |
ULTRA x 2PCS & NORMAL x 35PCS |
| INPUT VOLTAGE |
DC 12V(±10%) / AC 24V DUAL VOLTAGE |
| HEATER OPERATION SPECIFICATIONS |
THE INTERNAL TEMPERATURE. OFF : 20° / ON : -20° |
| POWER CONSUMPTION |
HEATER OFF DC IR OFF : 130mA(±10%) / IR ON : 580mA(±10%)
HEATER OFF AC IR OFF : 120mA(±10%) / IR ON : 720mA(±10%)
HEATER ON DC IR OFF : 230mA(±10%) / IR ON : 680mA(±10%)
HEATER ON AC IR OFF : 220mA(±10%) / IR ON : 820mA(±10%)
|
| OPERATION TEMP / HUM |
-10° C~ +50° C / MAX 90% RH |
| STORAGE TEMP / HUM |
-20° C ~ +60° C / MAX 90% RH |
