| IP CAMERA > |
|
|

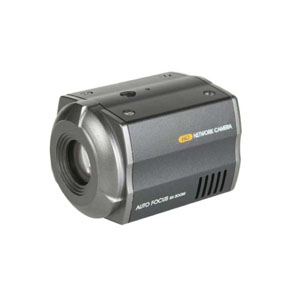

| EZIC-IG520 |
-H.264 & MJPE G HD Network Camera
-Dual Steam
-PoE
-2MP (1080P) @ 30FPS
-Motion Triggered Alarm
-Multi Language GUI support
-Digital Day & Night
-ONVIF Compliant
-2D/3D DNR
-BNC output
-5x Optical zoom lens Built-in
-Compatible with EZIP NDVR
|
  |
|
|
|
|
| Model |
EZIC-IG520 |
| CAMERA |
| Image Sensor |
1/2.8" Sony IMX-036 CMOS Sensor |
| Max. Resolution |
1920 x 1080 |
| Effective Pixels |
2096(H) x 1561(V) |
| Effective Image Size |
5.24mm(H) x 3.90mm(V), 6.53mm(Diagonal) |
| White Balance |
ATW / MANUAL(PRESET) |
| Electronic Zoom |
2 ~ 10x(Client Software) |
| AGC |
Yes |
| BLC(Backlight compensation) |
Yes |
| Iris |
- |
| Shutter Speed |
1/4, 1/10, 1/12.5, 1/15, 1/20, 1/25, 1/30, 1/50, 1/60, 1/100,
1/120, 1/240, 1/480, 1/960, 1/1024, 1/2000 s(TBD) |
| Slow Shutter |
TBD |
| Lens |
F=3.5~3.7(auto zoom lens), f=5.0~50mm |
| Day & Night |
Digital Day & Night |
| S/N ratio |
50 dB or more(TBD) |
| Min. illumination |
Color: 0.7 lux(F1.2, 30IRE)-TBD |
| B/W: 0.08 lux(F1.2, Slow Shutter ON, 30IRE)-TBD |
| NETWORK |
| Network |
10BASE-T, 100BASE-TX, RJ45 |
| Image Compression |
H.264 : Main Profile |
MJPEG - Image quality: 5 Steps: Lowest, Low : Medium:
High, Highest |
| Resolution |
1920 x 1080(Full HD), 1280 x 1024(SXGA), |
| 1024 x 768(XGA), 1280 x 720(720p) |
| 640 x 480(VGA), 320 x 240(QVGA) |
| 704 x 480/576(4CIF), 352 x 240/288(CIF) |
| Protocol |
IPv4/6, HTTP, HTTPS, SMTP, UPnP, DNS, DynamicDNS,NTP,
RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP |
| Frame Rate |
1 fps ~ 25 fps / 1 fps ~ 30 fps(TBD) |
| Web Browser |
Internet Explorer 7.0 or above, Firefox, Chrome, PDA/Smart
phone |
| Security |
Password Protection, HTTPS, IP Addressing Filtering(TBD) |
| SDK(API) |
HTML based API |
| VMD(Video Motion Detection) |
User set 4 ROI(Region Of Interest) / 10 Step Sensitivity |
| Alarm Trigger |
VMD |
| Alarm Event |
E-mail notification, FTP transfer, Video stream with alarm
status, Post Alarm |
| POWER |
| Power Source |
PoE(IEEE 802.3af compliant) |
| Power Consumption |
100mA @ DC48V, Max 4.8W (TBD) |
| OTHER SPECIFICATIONS |
| Ambient Temperature |
-10°C ~ 50°C(14°F~122°F) |
| Ambient Humidity |
less than 90%, Non-condensing |
| Materials |
Aluminum Diecasting |
| Weight |
180g |
| Dimensions(W x H x D) |
47.5(W)X44(D)X62.8(L) |
|
|
|
|
|
