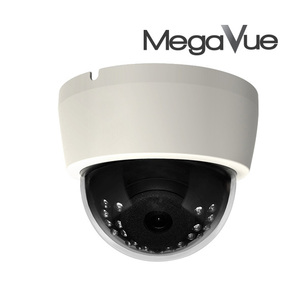

| SCDR24-F0CW |
- MegaVue 2MP, 1080P, HD-SDI
- Built-in 4mm Megapixel lens
- 24 IR Leds
- 3-Axis camera mount
Simple Elegant design/ Compact Housing
- 12V DC, 80mm dome size
|
  |
|
|
|
|
| Model |
SCDR24-F0CW |
| IMAGE SENSOR |
1/2.9" 2.1MEGA PIXEL SONY EXMOR CMOS |
| EFFECTIVE PIXEL |
1936 (H) x 1097 (V) |
| SCANNING SYSTEM |
PROGRESSIVE |
| VIDEO OUTPUT |
1 x HD-SDI,1 x BNC, 75 Ω COMPOSITE |
| S/N (Y Signal) |
MORE THAN 50dB |
| Min. ILLUMINATION |
0.02LUX (SENS-UP x30) |
| IRIS ADJUSTMENT |
MANUAL |
| LENS |
4mm MEGAPIXEL FIXED LENS |
| ELECTRONIC SHUTTER |
OFF/AUTO(1/30~1/50,000)FLK MANUAL(x2~x30) |
| OSD LANGUAGE |
ENG |
| BACKLIGHT COMPENSATION |
OFF |
| WHITE BALANCE |
ATW |
| DAY & NIGHT |
EXT (ICR) |
| PRIVACY MASKING |
- |
| NOISE REDUCTION |
SMART NR |
| ACCE |
OFF |
| DEFOG |
OFF |
| DIGITAL ZOOM |
OFF |
| SENS-UP |
x2 |
| MOTION DETECTION |
- |
| DIGIAL EFFECT |
OFF |
| DEFECT |
OFF |
| COMMUNICATION |
RS 485 (OPTION) |
| IR LED |
24PCS |
| INPUT VOLTAGE |
DC 12V(±10%) |
| POWER CONSUMPTION |
IR OFF : 200mA(MAX) / IR ON : 400mA(MAX) |
| OPERATION TEMP / HUM |
-10° C~ +50° C / MAX 90% RH |
| STORAGE TEMP / HUM |
-20° C ~ +60° C / MAX 90% RH |
|
|
|
|
|
