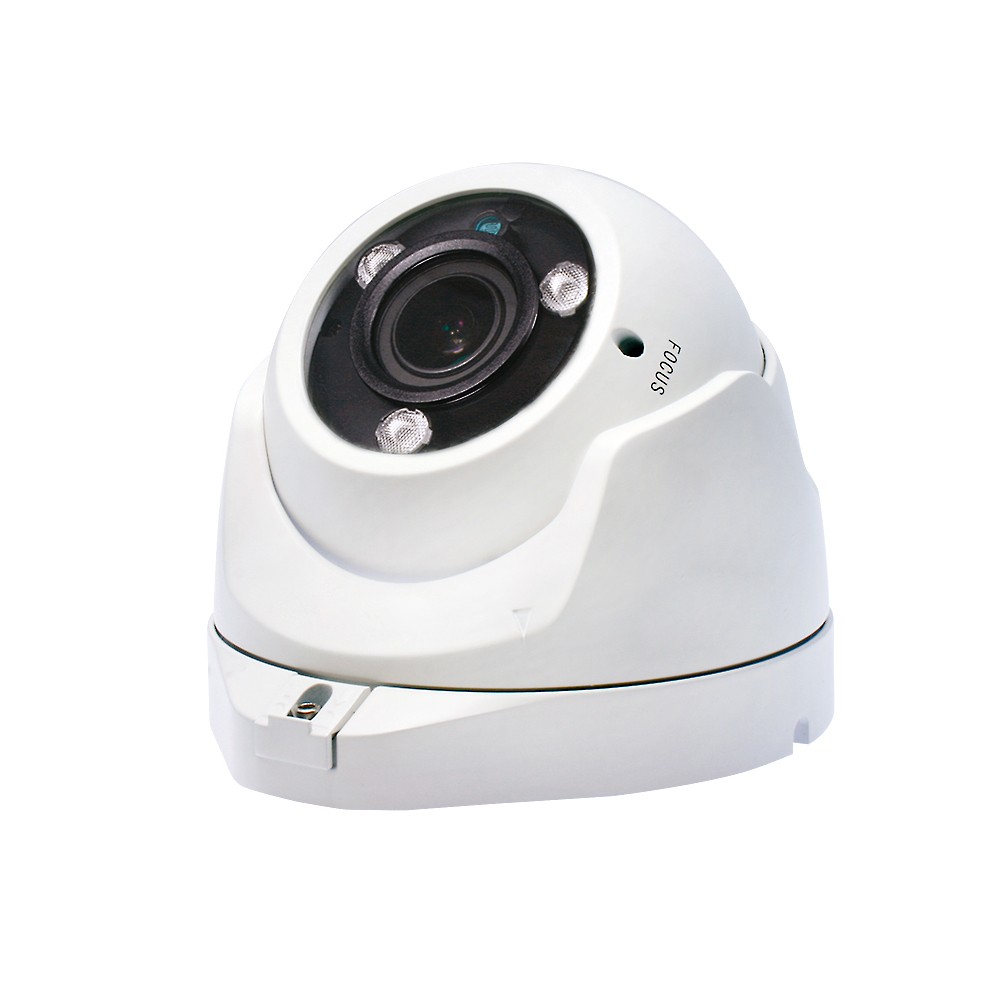

VIC-4RE21

Double click on above image to view full picture

Zoom Out
Zoom In
Toggle Block Social

Details

Camera
Sensor  1/3" 4M BSI CMOS Sensor
Min Illumination  0.01Lux@F1.2 (0Lux,IR on)
S/N  ≥50dB(AGC OFF)
WDR  D-WDR
IR LEDS  3 pcs IR Array
IR Range  40m
Lens  2.8-12mm
Current 480mA
Power Consumption  <6W
Weight  530g
IP Rating  IP66
Interface
Ethernet  RJ45 10M/100M
Audio Input  1CH Audio Input
Video Encode
Encoding   H.265, H.264
Resolution(Main Stream)  2688*1520, 1-15 fps
 2048*1536, 1-25(30)fps
 1920*1080, 1-25(30)fps
 1280*720, 1-25(30)fps
Resolution(Sub Stream)  1280*720, 1-25(30)fps
 640*480, 1-25(30)fps
 320*240, 1-25(30)fps
Resolution(Mob Stream)  640*480,1-25(30)fps,320*240,1-25(30)fps
Video Compression 64kbps-8000kbps Continuously Adjustable, CBR/VBR  Supported
Subtitle Overlay  Channel Name, Date&Time, Stream Information Overlay, Overlay
Position Adjustable
Data Transfer and Storage
Data Storage  Video, Image
Storage Mechanism  Manual, Auto(Loop, Timing, Alarm Switch Imput, Motion Detection)
Alarm Data Transfer  FTP, E-mail, Brower, Management Software
Network Protocol HTTP,TCP,ARP,RTSP,RTP,UDP,RTCP,SMTP,FTP,DHCP,DNS,DDNS,PPPoE,IPv4,UPnP,NTP
ONVIF Protocol  ONVIF 2.4 Supported
Client-side Browse IE,firefox
General Parameters
Input Voltage  DC12V±10%
Working Temperature  -40℃~+50℃
Working Humidity <90%RH(No Condensation)
