| Model |

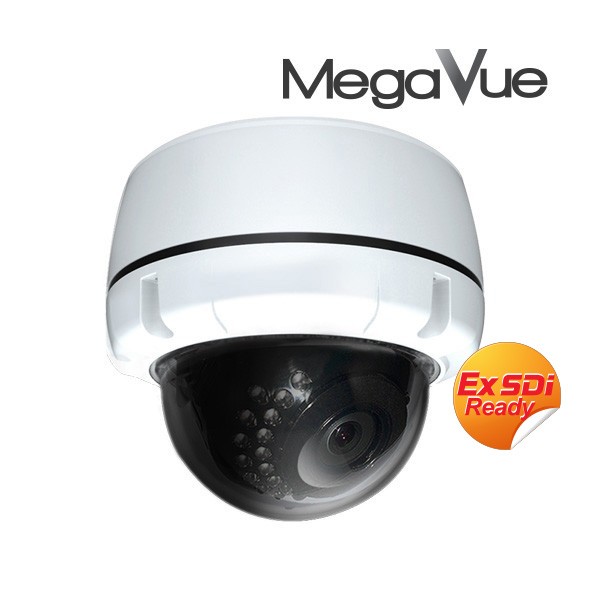

SCVR36-V5C |
| IMAGE SENSOR |
1/2.9″ 2.1MEGA PIXEL SONY EXMOR CMOS |
| EFFECTIVE PIXEL |
1936 (H) x 1097 (V) |
| SCANNING SYSTEM |
PROGRESSIVE |
| VIDEO OUTPUT |
1 x HD-SDI,1 x BNC, 75 Ω COMPOSITE |
| S/N (Y Signal) |
MORE THAN 50dB |
| Min. ILLUMINATION |
0.02LUX (SENS-UP x30) |
| IRIS ADJUSTMENT |
DC / MANUAL |
| LENS |
| ELECTRONIC SHUTTER |
| OSD LANGUAGE |
| BACKLIGHT COMPENSATION |
OFF /BLC / HSBLC |
| WHITE BALANCE |
AWC→SET KEY / MANUAL- BLUE,RED(1~100) / INDOOR / OUTDOOR |
| DAY & NIGHT |
Auto / EXT / B/W(IR SMART) / COLOR |
| PRIVACY MASKING |
On / Off (Programmable 8 zones) |
| NOISE REDUCTION |
2DNR/3DNR LEVEL(0~100) Adjustment / SMART NR |
| ACCE |
OFF / LOW / MIDDLE / HIGH |
| DEFOG |
Low / Middle / High / Off |
| DIGITAL ZOOM |
OFF/ON (x2 ~ x62) / OFF |
| SENS-UP |
OFF / x2~x30 |
| MOTION DETECTION |
3 AREA |
| DIGIAL EFFECT |
OFF / V-FLIP / MIRROR / ROTATE |
| DEFECT |
LIVE DPC (ON, OFF, AUTO) |
| COMMUNICATION |
RS 485 (OPTION) |
| IR LED |
36pcs |
| INPUT VOLTAGE |
DC 12V(±10%) / AC 24V DUAL VOLTAGE |
| HEATER OPERATION SPECIFICATIONS |
THE INTERNAL TEMPERATURE. OFF : 20° / ON : -20° |
| POWER CONSUMPTION |
HEATER OFF DC IR OFF : 210mA (MAX) / DC IR ON : 430mA (MAX)HEATER ON DC IR OFF : 330mA (MAX) / DC IR ON : 560mA (MAX)HEATER OFF AC IR OFF : 200mA (MAX) / AC IR ON : 350mA (MAX)HEATER ON AC IR OFF : 310mA (MAX) / AC IR ON : 450mA (MAX) |
| OPERATION TEMP / HUM |
-10° C~ +50° C / MAX 90% RH |
| STORAGE TEMP / HUM |
-20° C ~ +60° C / MAX 90% RH |
