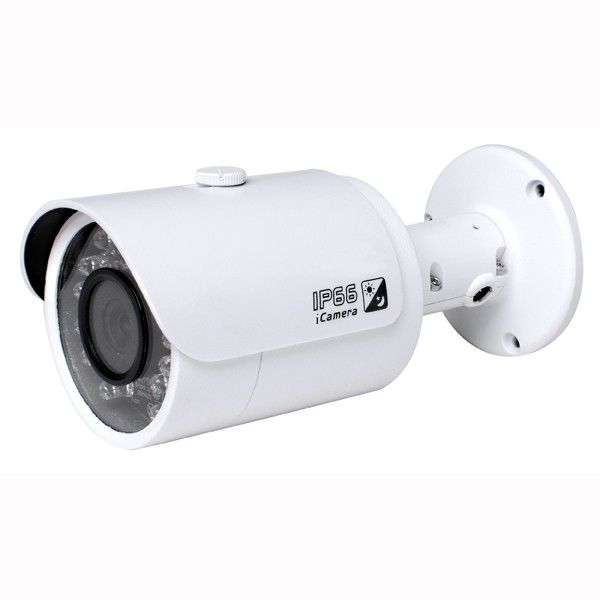

HAC-HFW1100SN

HAC-HFW1100SN

Availability: In stock

Product Code: HAC-HFW1100SN
Made in: China

Quick Overview

720P HD-CVI, 3.6mm Lens, IR 66ft, IP66, DC12V


-1/2.9" 1Megapixel CMOS
- 30fps@720P
- High speed, long distance real-time transmission
- Day/Night(ICR), AWB, AGC, BLC, 2D-DNR
- 3.6mm
- Max. IR LEDs length 30m, Smart IR (66FT)
- IP67, DC12V
[OEM version without Logo]

PDF Downloads

  • HFW1100S

    • Total Cost

    Get Approval / Log-In for Pricing
    OR
    • |
    Toggle Block Social

    Details

    Model DH-HAC-HFW1100SN
    Camera
    Image Sensor 1/2.9" 1Megapixel CMOS
    Effective Pixels 1280(H)×720(V)
    Electronic Shutter 1/60s~1/100,000s
    Video Frame Rate 30fps@720P
    Synchronization Internal
    Min. Illumination 0.01Lux@F1.2(AGC ON), 0Lux IR on
    Video Output 1-channel BNC HDCVI high definition video output
    Camera Features
    Max. IR LEDs Length 30m, Smart IR
    Day/Night Auto(ICR) / Color / B/W
    Noise Reduction 2D
    Lens
    Focal length 3.6mm
    Angle of View H: 52.2º(103.4º/79.7º/39.9º)
    Mount Type M12
    General
    Power Supply DC12V±10%
    Power Consumption Max 3.5W
    Working Environment -30°C~+60°C / Less than 95%RH (no condensation)
    Transmission Distance Over 800m via 75-3 coaxial cable
    Ingress Protection IP67
    Dimensions(W×D×H) Φ70mm×165mm
    Weight 0.35kg
    Material Metal (body) + Plastic (sun shield)
