Details

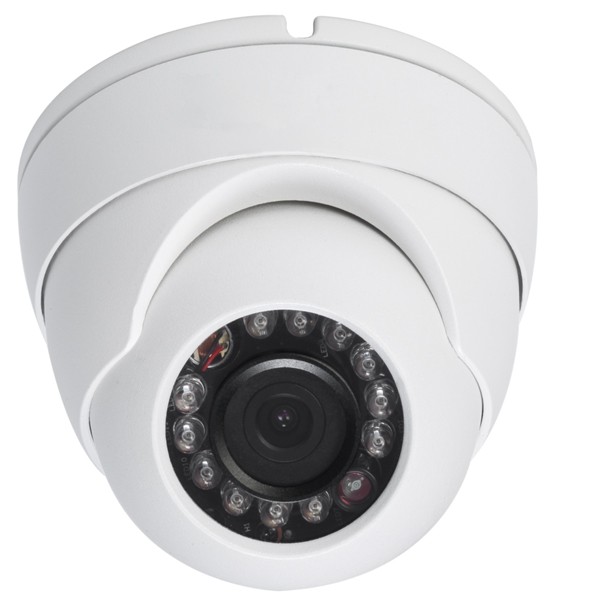

| Model | DH-HAC-HDW1100M | |
| Camera | ||
| Image Sensor | 1/2.9" 1Megapixel CMOS | |
| Effective Pixels | 1280(H)×720(V) | |
| Electronic Shutter | 1/60s~1/100,000s | |
| Video Frame Rate | 30fps@720P | |
| Synchronization | Internal | |
| Min. Illumination | 0.01Lux@F1.2(AGC ON), 0Lux IR on | |
| Video Output | 1-channel BNC HDCVI high definition video output | |
| Camera Features | ||
| Max. IR LEDs Length | 30m, Smart IR | |
| Day/Night | Auto(ICR) / Color / B/W | |
| Noise Reduction | 2D | |
| Lens | ||
| Focal Length | 3.6mm | |
| Angle of View | H: 79.7º(103.4º/52.2º/39.9º) | |
| Mount Type | M12 | |
| General | ||
| Power Supply | DC12V±10% | |
| Power Consumption | Max 2.5W | |
| Working Environment | -30°C~+60°C / Less than 95%RH (no condensation) | |
| Transmission Distance | Over 800m via 75-3 coaxial cable | |
| Ingress Protection | IP67 | |
| Dimensions | Φ93.4mm×79.7mm | |
| Weight | 0.35kg | |
| Material | Metal | |
