HAC-HFW2220S

HAC-HFW2220S

Availability: In stock

Product Code: HAC-HFW2220S
Made in: China

Quick Overview

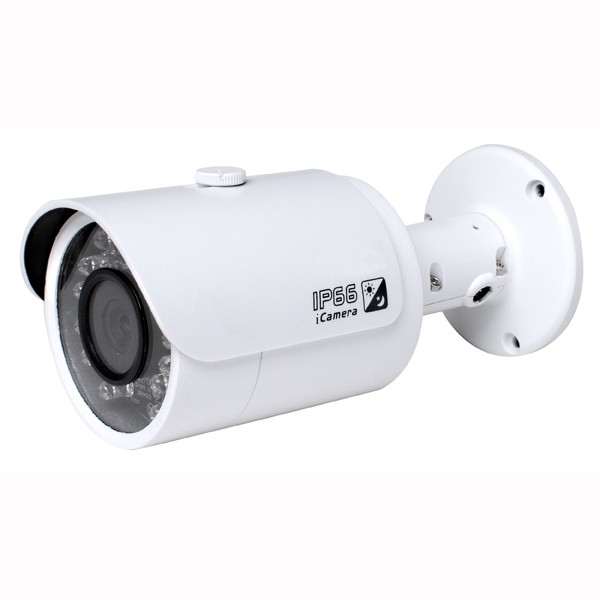

1080P HD-CVI, 3.6mm Lens, IR 66ft, IP66, DC12V


-1/2.8" 2.4Megapixel CMOS
- 25/30fps@1080P, 25/30/50/60fps@720P
- High speed, long distance real-time transmission
- HD and standard definition switchable
- OSD Menu, control over coaxial cable
- DWDR, Day/Night(ICR), AWB, AGC, BLC, 3D-DNR
- 3.6mm fixed lens
- Max. IR LEDs length 30m, Smart IR (66FT)
- IP67, DC12V
[OEM version without Logo]

PDF Downloads

  • SV-HFW2220S

    • Total Cost

    Get Approval / Log-In for Pricing
    OR
    • |
    Toggle Block Social

    Details

    Model DH-HAC-HFW2220SN
    Camera
    Image Sensor 1/2.8” 2.4Megapixel CMOS
    Effective Pixels 1984(H)×1225(V)
    Electronic Shutter 1/3s~1/100,000s
    Video Frame Rate 25/30/50/60fps@720P; 25/30fps@1080P
    Synchronization Internal
    Min. Illumination 0.05Lux@F1.2(AGC ON), 0Lux IR on
    Video Output 1-channel BNC HDCVI high definition video output/ CVBS
    standard definition video output (Can switch)
    Camera Features
    Max. IR LEDs Length 30m, Smart IR
    Day/Night Auto(ICR) / Color / B/W
    Noise Reduction 2D /3D
    OSD Menu Support
    Lens
    Focal length 3.6mm
    Angle of View H: 53.4º(88º/39º)
    Mount Type M12
    General
    Power Supply DC12V±10%
    Power Consumption Max 4.8W
    Working Environment -30°C~+60°C / Less than 95%RH (no condensation)
    Transmission Distance Over 500m via 75-3 coaxial cable
    Ingress Protection IP67
    Dimensions(W×D×H) Φ65mm×154.7mm
    Weight 0.38kg
    Material Metal

    Dimensions

    Dimensions

    Download

    Download
