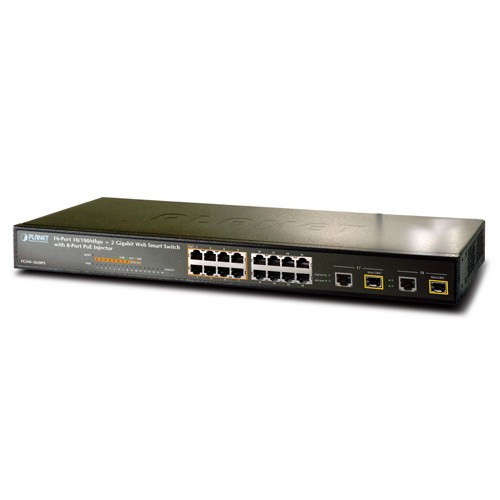

FGSW-1828PS

Previous Next

Availability: In stock

Product Code: 847690003405
Made in: Taiwan

Quick Overview

16-Port 10/100Mbps + 2 Gigabit TP / SFP Combo Web Smart PoE Switch

• Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z　Gigabit Ethernet standard
• 16-Port 10/100Mbps + 2 Gigabit TP / SFP Combo Web Smart PoE Switch
• 8-Port support 48VDC power to PoE Powered Device (Port 1 to port 8)
• Each Switching ports support auto-negotiation-10/20, 100/200Mbps (Fast Ethernet) , 1000/2000Mbps (Gigabit Ethernet) supported
• Auto-MDI / MDI-X detection on each RJ-45 port
• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x　pause frame flow control (full-duplex)
• High performance Store and Forward architecture, broadcast storm control,　runt / CRC filtering eliminates erroneous packets to optimize the network bandwidth
• 4K MAC address table, automatic source address learning and ageing
• 2.75Mb embedded memory for packet buffers
• Remote Web interface for Switch management and setup
• SNMP Trap for alarm notification of events
• Broadcast Storm Control support
• Supports up to 16 / 18 port-based VLAN groups / 32 IEEE 802.1Q VLAN groups / MTU VLAN
• Supports up to 2 Trunk groups, each trunk for up to maximum 4 port with 800Mbps bandwidth
• Supports QoS , bandwidth control and MAC address filter / TCP & UDP filter on each port
• Supports port mirroring function and IGMP Snooping v1 / v2
• PoE power Disable/Enable and PoE power consumption monitoring by management interface
• Firmware upgrade through Web interface
• Password setting, IP setting and device description setting through Planet Smart discovery utility
• 19-inch rack mount size
• Internal full-range power supply suitable for worldwide use
• EMI standards complies with FCC, CE class A

Total Cost

Get Approval / Log-In for Pricing

Toggle Block Social

Details

Hardware Specifications
Fast Ethernet Ports	16 10/100Base-TX RJ-45 Auto-MDI / MDI-X ports
Gigabit Ports	2 Gigabit TP / SFP combo interfaces
Power over Ethernet Ports	8-Port with PoE injector function (Port 1 to port 8)
Switch Processing Scheme	Store-and-Forward
Throughput (packet per second)	5.35Mpps.
Switch Fabric	7.2Gbps
Address Table	4K entries
Share Data Buffer	2.75Mb embedded memory for packet buffers
Flow Control	Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex
Dimensions	440 x 120 x 44 mm (1U height)
Weight	2.02 kg
Power Requirements	100-240V AC, 50-60 Hz, 1A
System Operation Power Consumption / Dissipation (Full load)	131 watts / 446.71BTU
Temperature	Operating: 0~50 degrees C Storage: -40~70 degrees C
Operating Humidity	5% to 90%, Storage: 5% to 90% (non-condensing)
Power over Ethernet
PoE Standard	IEEE 802.3af Power over Ethernet / PSE
PoE Power Supply Type	End-Span
PoE Power Output	Per Port 48V DC, 350mA. Max. 15.4 watts
Power Pin Assignment	1/2(+), 3/6(-)
Power Budget	110 watts
Smart Functions
System Configuration	Web interface
Alert Trap	SNMP Trap for alarm notification of events
Port Configuration	Port speed duplex mode selection. Flow control disable / enable. Port disable / enable. Port description on each port
Bandwidth Control	Yes, 1Mbps / 2Mbps / 4Mbps / 8Mbps / 16Mbps / 32Mbps / 64Mbps
Broadcast Storm Control	Yes, 5% / 10% / 25% / 50% / Disable
Port Statistics	Display each port's detail Ethernet traffic counter information
VLAN	16 / 18 port-based VLAN groups / 32 IEEE 802.1Q VLAN groups / MTU VLAN
Port Trunking	Support 2 groups of 4-Port trunk support, up to 800Mbps bandwidth per trunk
Port Mirroring	Port mirroring allows monitoring of the traffic across any port in real time
QoS	Allow to assign low / high priority on each port. First-In-First-Out, All-High-before-Low, Weight-Round-Robin QoS policy
MAC Address / TCP & UDP Filter	Yes
IGMP Snooping v1 / v2	Allow to disable or enable
PoE Power Control	Allow to disable or enable power provision and assign priority on each PoE port
Standards Conformance
Regulation Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 Ethernet IEEE 802.3u Fst Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet IEEE 802.3x Full-duplex Flow control IEEE 802.3af Power over Ethernet IEEE 802.1Q VLAN IEEE 802.1p QoS
