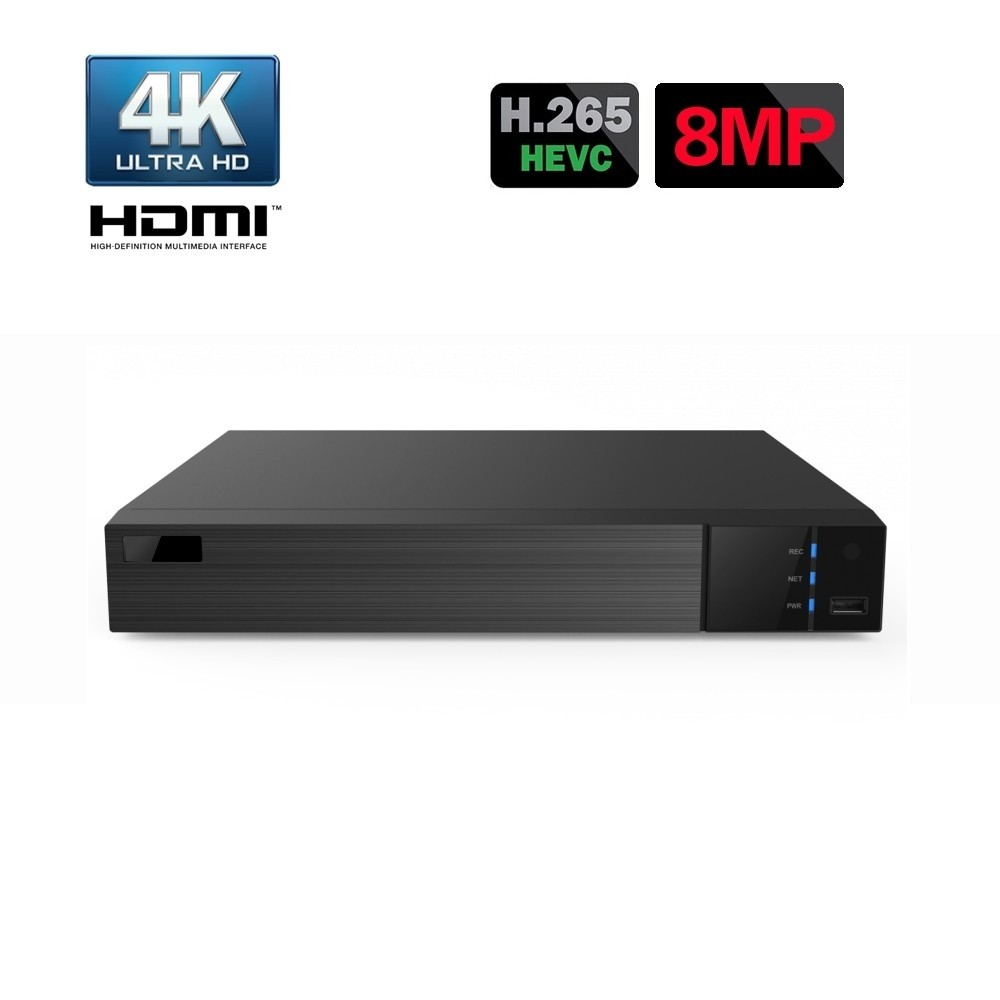

VIN-5108P8

Double click on above image to view full picture

Zoom Out
Zoom In
Toggle Block Social

Details

Model
VIN-5104P4
VIN-5108P8
System Compression
Standard H.265
Standard H.265
Main Processing Chip
ARM Cortex A7
ARM Cortex A7
OS
Embedded Linux
Embedded Linux
Video Network Access Bandwidth
40Mbps
50Mbps
Input Resolution 8MP、5MP、4MP、3MP、1080P、960P、720P real time 8MP、5MP、4MP、3MP、1080P、960P、720P real time
Network Access
4 CH IPC input
8 CH IPC input
Output HDMI×1:3840x2160/1920×1080/1280×1024 VGA×1:1920×1080/1280×1024

HDMI×1:3840x2160/1920×1080/1280×1024

VGA×1:1920×1080/1280×1024

Audio Input
4 CH IPC audio input
8 CH IPC audio input
2-way Audio
RCA×1
RCA×1
Local Output
RCA×1
RCA×1
Record Resolution
8MP、5MP、4MP、3MP、1080P、960P、720P
8MP、5MP、4MP、3MP、1080P、960P、720P
Frame Rate
25fps/30fps(PAL/NTSC)
25fps/30fps(PAL/NTSC)
Bite Stream
32Kbps-10Mbps
32Kbps-10Mbps
Image Quality
5 Level
5 Level
Playback Simultaneous Playback
Max 4 CH
Max 8 CH
Network Interface
RJ45 10/100Mbps × 1;RJ45×4(PoE Port)
RJ45 10/100Mbps × 1;RJ45×8(PoE Port)
Network Protocol TCP/IP、PPPoE、DHCP、DNS、DDNS、UPnP、NTP、SMTP、ONVIF、GB28181 TCP/IP、PPPoE、DHCP、DNS、DDNS、UPnP、NTP、SMTP、ONVIF、GB28181
Storage HDD
SATA×1
SATA×1
Max Capacity for 1 single HDD
8T
8T
Backup USB Backup
Yes
Yes
eSata Backup
No
No
Interface Alarm In
No
No
Alarm Output
No
No
Communication
No
No
Remote
Optional
Optional
USB USB2.0×2( one in the front panel and the other in the rear panel ) USB2.0×2( one in the front panel and the other in the rear panel )
Others Case
1U
1U
Dimensions(mm )
300×248×52(W×D×H)
300×248×52(W×D×H)
Power Supply
DC48V
DC48V
Consumption
≤ 5W ( without HDD )
≤ 5W ( without HDD )
Work Environment
-10 ~ 50 ℃,10% ~ 90% humidity
-10 ~ 50 ℃,10% ~ 90% humidity
