Details

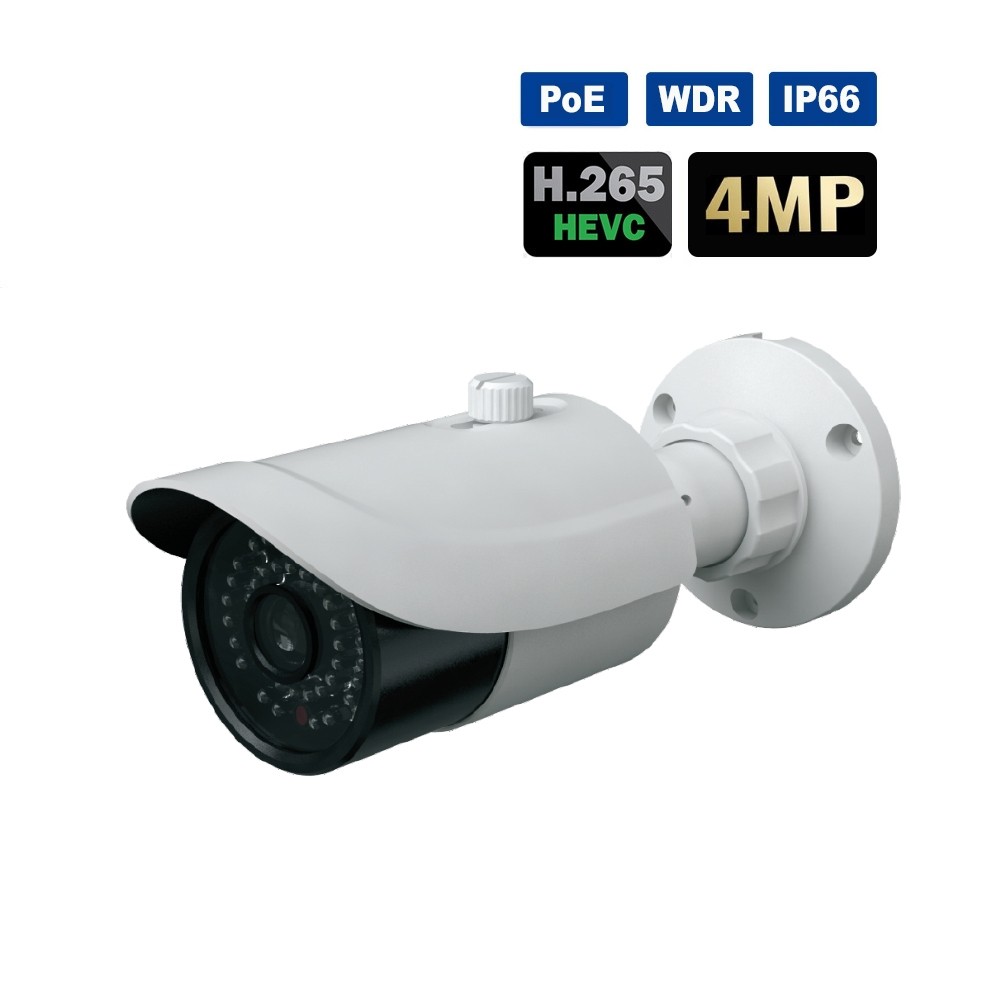

| Specifications | VIC-4OB3 | |
| Camera | ||
| Image Sensor | 1 / 3 "CMOS | |
| Image Size | 2688 x 1520 | |
| Electronic Shutter | 1 /25s~ 1 /100000s | |
| Auto Iris | Fixed Iris | |
| Min. Illumination | 0.05 lux @F1.2,AGC ON; 0 lux with IR | |
| Lens | 3.6 mm @F1.6, angle of view: 72° (2.8 mm, 6 mm, 8 mm optional ) |
|
| Lens Mount | M12 | |
| Day & Night | ICR | |
| Wide Dynamic Range | 120dB | |
| BLC | Yes | |
| HLC | Yes | |
| Defogging | Yes | |
| Digital NR | 2D/3D DNR | |
| Angle Adjustment | Any angle | |
| Image | ||
| Video Compression | H.265 / H.264 / MJPEG | |
| H.265 Compression Standard | Main Profile @Leve4.1 High Tier | |
| Resolution | 4MP( 2592x1520 ),2K( 2560x1440 ),3MP( 2304x1296), 1080P( 1920x1080), 720P( 1280x720), D1, CIF, 480x240 | |
| Main Stream | 60Hz : 4MP( 1 ~ 30fps ) / 2K( 1 ~ 30fps ) / 3MP( 1 ~ 30fps ) / 1080P( 1 ~ 30fps ) / 720P( 1 ~ 30fps ) 50Hz : 4MP( 1 ~ 25fps ) / 2K( 1 ~ 25fps ) / 3MP( 1 ~ 25fps ) / 1080P( 1 ~ 25fps ) / 720P( 1 ~ 25fps ) | |
| Bit Rate | 64 Kbps ~ 10 Mbps | |
| Encode Mode | VBR/CBR | |
| Quality | Five levels under VBR; Freely adjustable under CBR | |
| Image Settings | ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser | |
| Audio Compression | G711A/U | |
| ROI | Each ROI to be configured separately | |
| Interfaces | ||
| Network | RJ45 | |
| Audio | MIC IN x1 | |
| Video Output | CVBS video output ( BNC x 1 ) | |
| Functions | ||
| Remote Monitoring | IE browsing,CMS remote control | |
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission | |
| Network Protocol | TCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP | |
| Interface Protocol | ONVIF, GB-T/28181-2011 | |
| Storage | Network remote storage | |
| Smart Alarm | Motion Alarm | |
| PoE | Yes | |
| IR Distance | 20 ~ 30 m | |
| Water-proof | IP66 | |
| Others | ||
| Power Supply | DC12V /PoE | |
| Power Consumption | < 2.5W | |
| IR Consumption ON | < 6W | |
| Operating Environment | -20 °C ~ 50 °C,10 % ~ 90 % humidity | |
| Dimensions ( mm ) | 0 87 x 219 | |
| Weight ( net ) | 609g | |
| Installation | Wall mounting, pendent mounting | |
