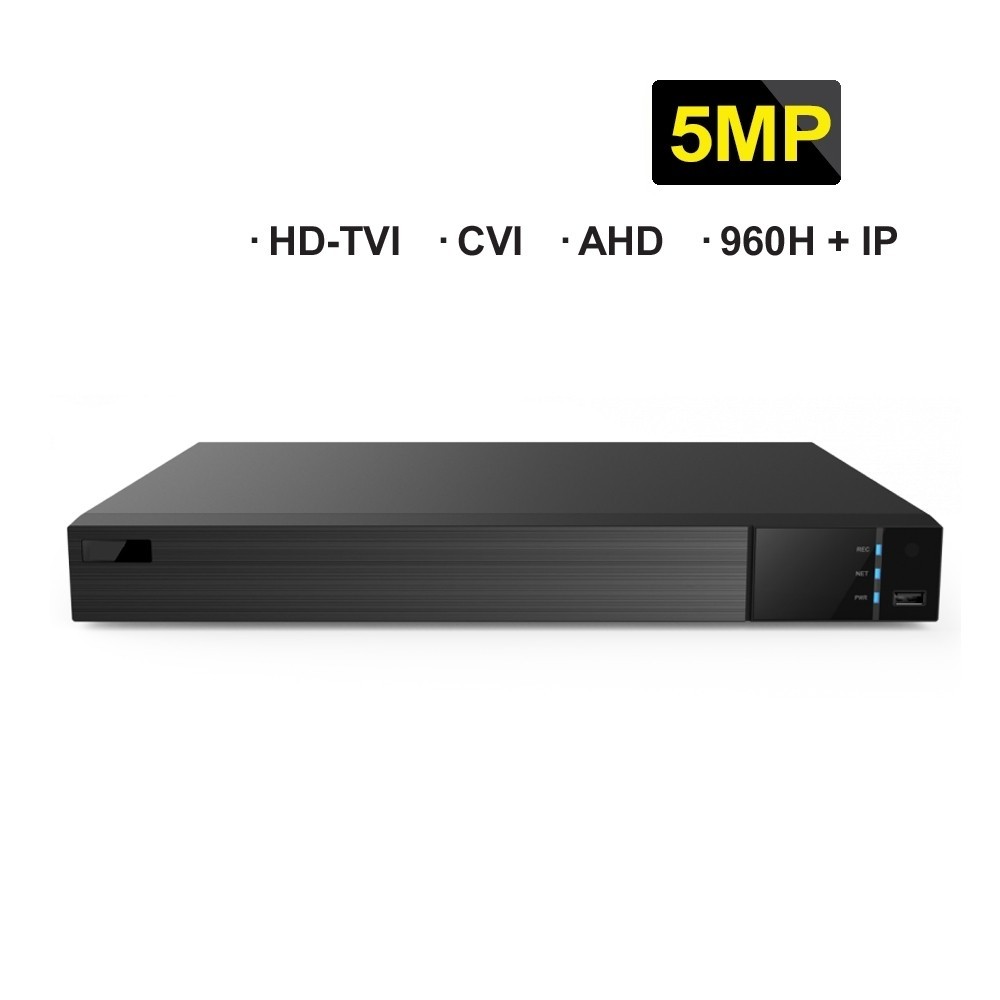

| Model |
VTD-5104 |
| |
Compression |
Standard H.264 High Profile |
| |
CPU |
Cortex A7 |
| System |
OS |
Embedded Linux |
| video |
Input |
BNC × 4 |
| Resolution |
TVI / AHD : 5MP@20fps; 4MP, 3MP, 1080P , 720P , WD1 real time |
|
| CVI : 1080P,720P real time |
IP Input /
Access Bandwidth |
IPC×1 / 6Mbps |
|
|
| Output |
HDMI × 1 : 2560 × 1440, 1920 × 1080, 1280 × 1024
VGA × 1 : 1920 × 1080, 1280 × 1024
BNC × 1 : CVBS ( used as the main or spot output ) |
|
|
|
|
| Audio |
Input |
RCA × 4 |
| Output |
RCA × 1 |
| Two-way audio |
Take up channel one audio input |
| Record |
Resolution |
5MP, 4MP, 4MP lite, 3MP,1080P, 720P, WD1 |
| Frame Rate |
5MP : 10fps (PAL / NTSC) |
| |
| 4MP / 3MP : 12 fps (PAL) / 15 fps (NTSC) |
| |
| 4MP lite/1080P/720P/WD1: 25 fps (PAL) / 30 fps (NTSC) |
| Bit Rate |
768Kbps ~ 8Mbps |
| Mode |
Manual, timer, motion, sensor |
| IP Input |
Resolution |
3MP / 1080P / 960P / 720P |
| Frame Rate |
25fps (PAL) / 30fps ( NTSC ) |
| Play |
Playback |
4 CH |
| |
Search |
Time slice / time / event / tag search |
| back |
Smart Search |
Highlighted color to display the camera record in a certain period of time, different colors refers to different record events |
| |
Function |
Play, pause, FF, FB, digital zoom, etc. |
| Alarm |
Mode |
Manual, sensor, motion, exception |
| Input |
4 |
| Output |
1 |
| Triggering |
Record, snap, preset, e-mail, etc. |
| Network |
Interface |
RJ45 10 / 100Mbps × 1 |
| Protocol |
TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP |
| Web Client |
Multiple users online |
| Mobile |
OS |
iOS, Andriod |
| |
| Device |
| Storage |
HDD |
SATA × 1, max 8T |
| Backup |
Local Backup |
U disk, USB mobile HDD |
| Network Backup |
Yes |
| Port |
RS485 |
RS485 × 1, connect to PTZ or keyboard |
| USB |
USB 2.0 × 2 ( one in the front panel and the other in the rear panel) |
| Remote |
Yes |
| |
| Controller |
| Others |
Power Supply |
DC12V |
| Consumption |
≤ 5W ( without HDD ) |
| Dimensions( mm ) |
300 × 248 × 52 ( W × D × H ) |
| Work |
-10 ～ 50 ℃，10% ～ 90% humidity |
| |
| Environment |
