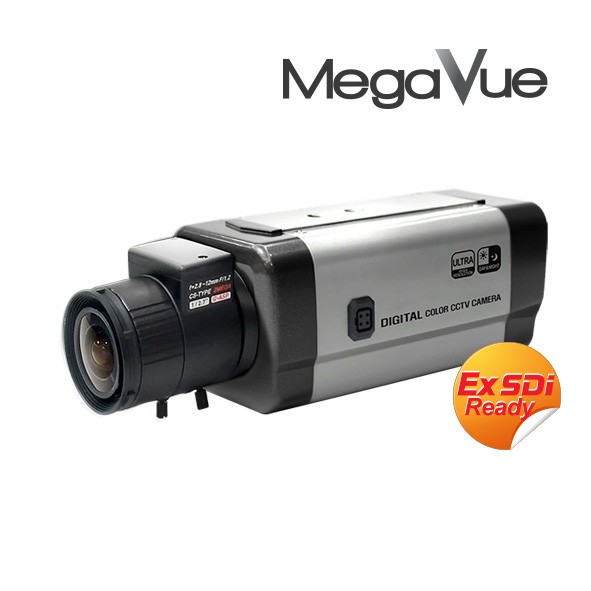

| Model |
SCG-A5C |
| IMAGE SENSOR |
2.1Megapixel Sony Exmor CMOS |
| EFFECTIVE PIXEL |
1920 (H) x 1080 (V) = 2.07M |
| SCANNING SYSTEM |
Progressive |
| VIDEO OUTPUT |
HD_SDI, CVBS : 1.0Vp-p, 75Ω composite |
| VIDEO OUTPUT |
HD_SDI(1080P(30P)/ 720P(30P)/720 CROP(60P) |
| S/N RATIO |
More than 52dB |
| Min. ILLUMINATION |
0.02Lux(Sen-UP X32) |
| LENS |
- |
| IRIS ADJUSTMENT |
ALC/ESC |
| ELECTRONIC SHUTTER |
>OFF/AUTO(1/30~1/50,000)FLK / MANUAL(x2~x30) |
| OSD LANGUAGE |
>ENG/CHN/CHN[S]/JPN/KOR |
| BACKLIGHT COMPENSATION |
OFF /HLC/BLC/WDR |
| DAY & NIGHT |
COLOR/BW/EXTERN/AUTO |
| AUTO GAIN CONTROL |
LEVEL(0~20)Adjustment |
| WHITE BALANCE |
AUTO/AUTODEXT/PRESET/MANUAL |
| PRIVACY MASKING |
On / Off (Programmable 16 zones) |
| DNR |
OFF/LOW/MIDDLE/HIGH |
| ACE |
OFF/LOW/MIDDLE/HIGH |
| DEFOG |
OFF/LOW/MIDDLE/HIGH |
| DIGITAL ZOOM |
OFF/ON (x1 ~ x8.0) |
| SENS-UP |
0FF/ X2~X32 |
| MOTION |
4 AREA |
| DIGIAL EFFECT |
OFF / V-FLIP / MIRROR / ROTATE |
| DEFECT |
LIVE DPC/ DPC SET |
| IR LED |
- |
| INPUT VOLTAGE |
DC 12V(±10%) / AC 24V DUAL VOLTAGE (OPTION) |
| POWER CONSUMPTION |
DC IR OFF : 200mA(±10%) / IR ON : 500mA(±10%)
AC IR OFF : 190mA(±10%) / IR ON : 430mA(±10%) |
| OPERATING TEMP / HUM |
-10°C~ +50°C / MAX 90% RH |
| STORAGE TEMP / HUM |
-20°C ~ +60°C / MAX 90% RH |
