Details

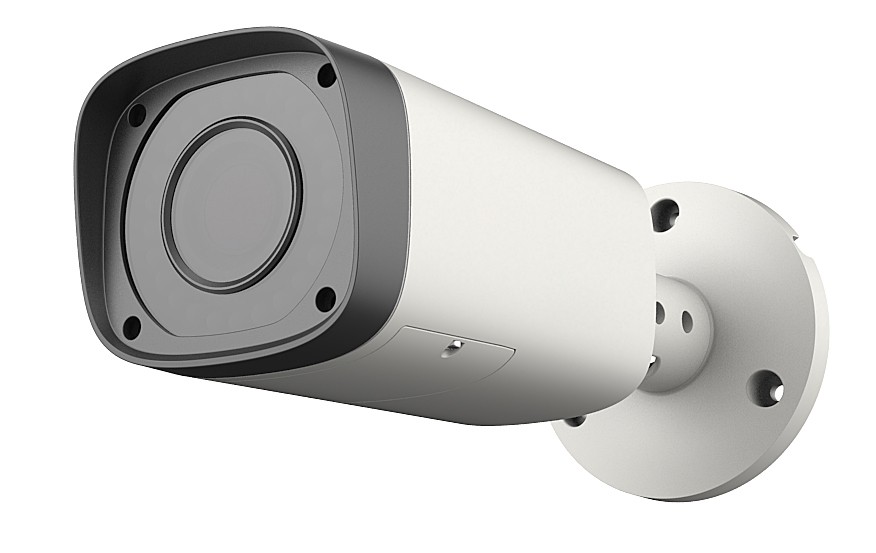

| Model | DH-HAC-HFW2220RN-Z | |
| Camera | ||
| Image Sensor | 1/2.8" 2.4Megapixel CMOS | |
| Effective Pixels | 1984(H)×1225(V) | |
| Electronic Shutter | 1/3s~1/100,000s | |
| Video Frame Rate | 25/30/50/60fps@720P; 25/30fps@1080P | |
| Synchronization | Internal | |
| Min. Illumination | 0.05Lux@F1.2(AGC ON), 0Lux IR on | |
| Video Output | 1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch) |
|
| Camera Features | ||
| Max. IR LEDs Length | 30m, Smart IR | |
| Day/Night | Auto(ICR) / Color / B/W | |
| Noise Reduction | 2D/3D | |
| OSD Menu | Support | |
| Lens | ||
| Focal Length | 2.7~12mm | |
| Angle of View | H: 105.5º~32.9º | |
| Lens Type | Motorized / Fixed Iris | |
| General | ||
| Power Supply | DC12V±10% | |
| Power Consumption | Max 8.6W | |
| Working Environment | -30°C~+60°C / Less than 95%RH (no condensation) | |
| Transmission Distance | Over 500m via 75-3 coaxial cable | |
| Ingress Protection | IP67 | |
| Dimensions | 213mm×80mm×72mm | |
| Weight | 0.55kg | |
| Material | Metal | |
