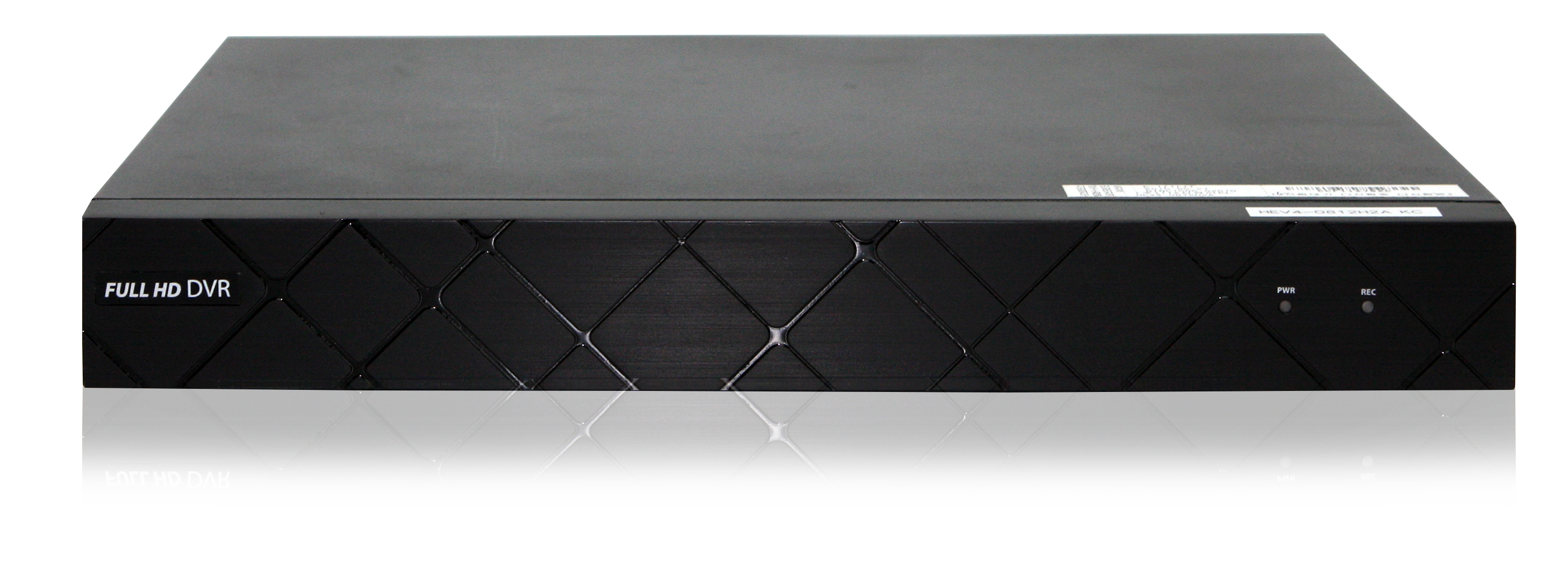

EL4-162-I

EL4-162-I

Availability: In stock

Product Code: EL4-162-I
Made in: South Korea

Quick Overview

EL4 SERIES , 16CH, All In One - Supports TVI/AHD/CVI/CVBS/IP Hybrid Digital Video Recorder



• Supports H.264 codec
• Supports 4K display & Dual display
• Up to Max. 5M recording
• All In One - Supports TVI/AHD/CVI/CVBS/IP
• Supports Various IP Camera by ONVIF
• Supports VA - Various Video Analytics function
•  Supports CVBS Spot Monitor
•  HD monitor and VGA Video Output
• Supports P2P
•  Compact Size & easy to install the HDD


PDF Downloads

  • EL4-162-I

    • Total Cost

    Get Approval / Log-In for Pricing
    • |
    Toggle Block Social

    Details

    CHANNELs 4CH 8CH 16CH
    VIDEO INPUT SIGNAL SD(960) / AHD,TVI(HD,FHD)/
     3,4,5M    		 SD(960) / AHD,TVI(HD,FHD)/
     3,4,5M    		 SD(960) / AHD,TVI(HD,FHD)/
     3,4,5M
    MAIN MONITOR HDMI / VGA HDMI / VGA HDMI / VGA
    SPOT OUT 1(CVBS) 1(CVBS) 1(CVBS)
    LOOP THROUGH no no no
    MOTION DETECTION YES YES YES
    AUDIO INPUT SIGNAL 4CH(10KOhm, 2.8Vpp) 4CH(10KOhm, 2.8Vpp) 4CH(10KOhm, 2.8Vpp)
    OUTPUT SIGNAL 1CH(600Ohm, 2.8Vpp) 1CH(600Ohm, 2.8Vpp) 1CH(600Ohm, 2.8Vpp)
    CODEC G.711 ulaw G.711 ulaw G.711 ulaw
    RECORDING CODEC H.264 H.264 H.264
    REC. RATE Upto 48FPS@ 5M
     Upto 60FPS@ 4M
     Upto 72FPS@ 3M
     Upto 120FPS@ FHD    		 Upto 96FPS@ 5M
     Upto 120FPS@ 4M
     Upto 144FPS@ 3M
     Upto 240FPS@ FHD    		 Upto 96FPS@ 5M
     Upto 120FPS@ 4M
     Upto 144FPS@ 3M
     Upto 240FPS@ FHD
     (2/3/4/5M Noise Filter Off 설정 시 값)
    Up to 120FPS@ 2CIF Up to 240FPS@ 2CIF Up to 480FPS@ 2CIF
    Up to 120FPS@ CIF Up to 240FPS@ CIF Up to 480FPS@ CIF
    REC. RESOLUTION CIF, 2CIF, D1, 960H, 720P, 1080P, 3M, 4M, 5M CIF, 2CIF, D1, 960H, 720P, 1080P, 3M, 4M, 5M CIF, 2CIF, D1, 960H, 720P, 1080P, 3M, 4M, 5M
    ALARM I/O ALARM INPUT 2CH 2CH 2CH
    ALARM OUT 1CH(RELAY) 1CH(RELAY) 1CH(RELAY)
    STORAGE INTERNAL HDD 1EA 2EA 2EA
    EXTERNAL STORAGE no no no
    INTERNAL ODD no no no
    INTERFACE USB 2x front 2x front 2x front
    RS-485 1 1 1
    RS-232 - - -
    LAN 1x 10/100 1x 10/100/1000 1x 10/100/1000
    REMOTE CONTROL YES YES YES
    ETC SIGNAL SWITCH NO NO NO
    WATCHDOG YES YES YES
    COOLING FAN NO 1 1
    POWER POWER SUPPLY 12V/2A 12V/3A 12V/3A
    POWER CONSUMPTION 6W max. without HDD 13W max. without HDD 14W max. without HDD
    ENVIROMENT TEMPERATURE
    / HUMINITY    		 0ºC ~ 40ºC (32ºF~104ºF)
    / 10 ~ 90% NC    		 0ºC ~ 40ºC (32ºF~104ºF)
    / 10 ~ 90% NC    		 0ºC ~ 40ºC (32ºF~104ºF)
    / 10 ~ 90% NC
    CHASSIS DIMENSION (mm) 260(W) x 262.6(D) x 44(H) 380(W) x 314.6(D) x 44(H) 380(W) x 314.6(D) x 44(H)
    NET WEIGHT(kg) 1.54 2.52 2.58
    GROSS WEIGHT(kg) 2.28 3.63 3.69
    CERTIFICATION UL, CUL, FCC, CE CE, FCC, c-Tick CE, FCC, c-Tick CE, FCC, c-Tick
    MONITORING DISPLAY RATE 120FPS@2M
     54FPS@3M
     120FPS@4M(half)
     80FPS@5M(half)    		 240FPS@2M
     108FPS@3M
     240FPS@4M(half)
     160FPS@5M(half)    		 480FPS@2M
     216FPS@3M(half)
     480FPS@4M(half)
     320FPS@5M(half)
    DISPLAY RESOLUTION 1920x1080(HD Display, VGA),
     Dual Display (Mirroring)    		 1920x1080(HD Display, VGA),
     Dual Display (Mirroring)    		 1920x1080(HD Display, VGA),
     Dual Display (Mirroring)
    DISPLAY MODE 1,4,6,8,9 1,4 1,4,6,8,9,16
    SEQUENCE Programmable Sequence Programmable Sequence Programmable Sequence
    DIGITAL ZOOM YES YES YES
    COVERT CAMERAS YES YES YES
    CAMERA COLOR
    CONTROL    		 YES (CONTRAST, COLOR,
    TINT, BRIGHTNESS)    		 YES (CONTRAST, COLOR,
    TINT, BRIGHTNESS)    		 YES (CONTRAST, COLOR,
    TINT, BRIGHTNESS)
    PTZ CAMERA YES YES YES
    RECORD SCHEDULE METHOD DAILY/WEEKLY EACH HOUR DAILY/WEEKLY EACH HOUR DAILY/WEEKLY EACH HOUR
    PROGRAMMABLE FOR CH YES YES YES
    MANUAL RECORDING YES YES YES
    POST-EVENT RECORDING 5/10/15/20/30/60/180 SEC 5/10/15/20/30/60/180 SEC 5/10/15/20/30/60/180 SEC
    EVENT RECORDING YES YES YES
    PRE-EVENT RECORDING 0/1/2/3/4/5/10/15 SEC 0/1/2/3/4/5/10/15 SEC 0/1/2/3/4/5/10/15 SEC
    PANIC RECORDING YES YES YES
    EVENT LOGGING YES
    (MOTION,ALARM,PANIC,VLOSS)    		 YES
    (MOTION,ALARM,PANIC,VLOSS)    		 YES
    (MOTION,ALARM,PANIC,VLOSS)
    SYSTEM LOGGING YES (SYSTEM ON/OFF,
    TIME CHANGED,
    HDD/EMAIL OPERATIONS,
    SYSYEM OPERATIONS)    		 YES (SYSTEM ON/OFF,
    TIME CHANGED,
    HDD/EMAIL OPERATIONS,
    SYSYEM OPERATIONS)    		 YES (SYSTEM ON/OFF,
    TIME CHANGED,
    HDD/EMAIL OPERATIONS,
    SYSYEM OPERATIONS)
    SETUP LOGGING YES (SETUP CHANGED) YES (SETUP CHANGED) YES (SETUP CHANGED)
    REMOTE LOGGING YES
    (WHO, IP ADDRESS,
    REMOTE OPERATIONS)    		 YES
    (WHO, IP ADDRESS,
    REMOTE OPERATIONS)    		 YES
    (WHO, IP ADDRESS,
    REMOTE OPERATIONS)
    SEARCH
    & PLAYBACK    		 DISPLAY MODE 1,4 1,4,9 1,4,9,16
    PLAYBACK RATE Same as Recording Rate Same as Recording Rate Same as Recording Rate
    PLAYBACK SPEED x1, x2, x4, x8, x16, x32, x64 x1, x2, x4, x8, x16, x32, x64 x1, x2, x4, x8, x16, x32, x64
    SEARCH TYPE CALENDER / EVENT
    / TIME / TUHMBNAIL    		 CALENDER / EVENT
    / TIME / TUHMBNAIL    		 CALENDER / EVENT
    / TIME / TUHMBNAIL
    ARCHIVING ARCHIVING DEVICES USB Memory, FTP USB Memory, FTP USB Memory, FTP
    REMOTE ARCHIVING YES (WEB RA, VMS, FTP) YES (WEB RA, VMS, FTP) YES (WEB RA, VMS, FTP)
    SNAPSHOT ARCHIVING YES YES YES
    DATA RESERVING YES YES YES
    RESERVED DATA LIST
    MANAGEMENT    		 YES YES YES
    BACKUP DATA FORMAT AVI, RAW AVI, RAW AVI, RAW
    WARTERMARK YES YES YES
    WARTERMARK
    VARIFICATION    		 YES YES YES
    ARCHIVED DATA
    PLAYBACK    		 YES YES YES
    NETWORK MAX. CONNECTIONS 32 USERS 32 USERS 32 USERS
    DHCP / DDNS YES YES YES
    TRANSMISSTION RATE MAX 240 FPS MAX 120 FPS MAX 480 FPS
    BANDWIDTH CONTROL YES YES YES
    WEB BROWSER ACCESS YES YES YES
    REMOTE FUCNTION REMOTE MONITORING /
    PLAYBACK / ARCHIVING /
    SETUP / PTZ CONTROL
    / HEALTH CHECK    		 REMOTE MONITORING /
    PLAYBACK / ARCHIVING /
    SETUP / PTZ CONTROL
    / HEALTH CHECK    		 REMOTE MONITORING /
    PLAYBACK / ARCHIVING /
    SETUP / PTZ CONTROL
    / HEALTH CHECK
    VMS SUPPORT YES YES YES
    TWO-WAY AUDIO YES YES YES
    PC BASED
    REMOTE AGENT    		 YES YES YES
    SMART PHONE
    APPLICATION    		 YES (iOS, Android) YES (iOS, Android) YES (iOS, Android)
    WEB BASED
    REMOTE AGENT    		 YES
    (WINDOWS®, LINUX,
    MAC OS/X®, ETC.)    		 YES
    (WINDOWS®, LINUX,
    MAC OS/X®, ETC.)    		 YES
    (WINDOWS®, LINUX,
    MAC OS/X®, ETC.)
    SDK YES (HTTP, RTSP Protocol Base) YES (HTTP, RTSP Protocol Base) YES (HTTP, RTSP Protocol Base)
    AUTO ROUTER
    PORT FORWARDING    		 YES YES YES
    DUAL STREAMING YES YES YES
    FTP CLIENT YES (For ARCHIVING) YES (For ARCHIVING) YES (For ARCHIVING)
    E-MAIL YES (SMTP CLIENT) YES (SMTP CLIENT) YES (SMTP CLIENT)
    AUTHORITY CONTROL ADMIN / MANAGER / USER ADMIN / MANAGER / USER ADMIN / MANAGER / USER
    PROTOCOLS RTP, RTSP, RTCP, SMTP,
    NTP, HTTP, FTP, DDNS, DHCP,
    Upnp (Router Port Forwading)    		 RTP, RTSP, RTCP, SMTP,
    NTP, HTTP, FTP, DDNS, DHCP,
    Upnp (Router Port Forwading)    		 RTP, RTSP, RTCP, SMTP,
    NTP, HTTP, FTP, DDNS, DHCP,
    Upnp (Router Port Forwading)
    EVENT TYPE VIDEO LOSS EVENT
    / EVENT NOTIFICATION
    / EVENT POPUP
    / MOTION DETECTION
    / MOTION SENSOR AREA    		 VIDEO LOSS EVENT
    / EVENT NOTIFICATION
    / EVENT POPUP
    / MOTION DETECTION
    / MOTION SENSOR AREA    		 VIDEO LOSS EVENT
    / EVENT NOTIFICATION
    / EVENT POPUP
    / MOTION DETECTION
    / MOTION SENSOR AREA
    ETC LANGUAGE MULTI-LANGUAGE MULTI-LANGUAGE MULTI-LANGUAGE
    KEYBOARD CONTROLLER  YES - YES
    OPERATING SYSTEM LINUX® LINUX® LINUX®
    FILE SYSTEM ITX FILESYSTEM ITX FILESYSTEM ITX FILESYSTEM
    DST SETUP YES YES YES
    DISK TEMPATURE CHECK YES (DEPEND ON HDD SPEC) YES (DEPEND ON HDD SPEC) YES (DEPEND ON HDD SPEC)
    DISK S.M.A.R.T CHECK YES YES YES
    AUTO DISK RECOVERY YES YES YES
    F/W UPGRADE  YES YES YES
    SETUP IMPORT/EXPORT YES YES YES
    PTZ CONTROL YES
    (PAN / TILT / ZOOM /
    FCOUS / IRIS / PRESET)    		 YES
    (PAN / TILT / ZOOM /
    FCOUS / IRIS / PRESET)    		 YES
    (PAN / TILT / ZOOM /
    FCOUS / IRIS / PRESET)
