Details

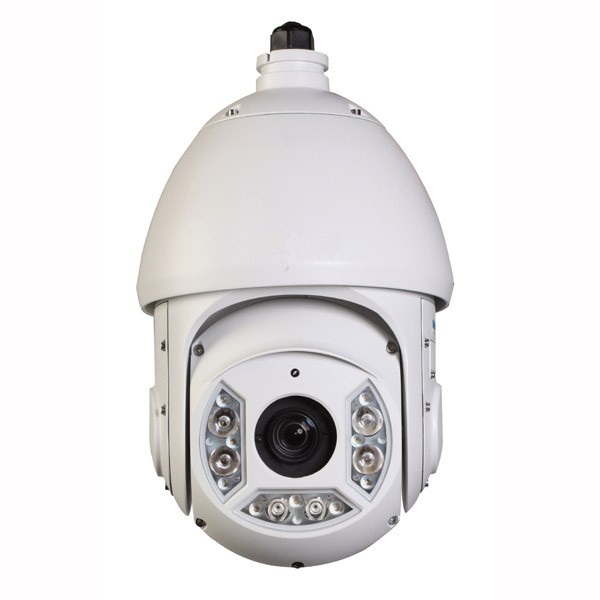

| Model | DH-SD6C220I-HC | DH-SD6C230I-HC |
| Camera | ||
| Image Sensor | 1/2.8” Exmor CMOS | |
| Effective Pixels | 1920(H) x 1080(V), 2Megapixels | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | 1/1 ~ 1/30,000s | |
| Min. Illumination | Color: 0.05Lux@F1.4; B/W: 0.005Lux@F1.4; 0Lux (IR on) | Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6; 0Lux (IR on) |
| S/N Ratio | More than 50dB | |
| Resolution | 25/30fps@1080P, 25/30/50/60fps@720P | |
| Video Output | 1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch) | |
| Camera Features | ||
| Day/Night | Auto(ICR) / Color / B/W | |
| Backlight Compensation | BLC / HLC / DWDR (Digital WDR) | |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual | |
| Gain Control | Auto / Manual | |
| Noise Reduction | 2D/3D | |
| Privacy Masking | Up to 24 areas | |
| Digital Zoom | 16x | |
| Lens | ||
| Focal Length | 4.7mm~94mm (20x Optical zoom) |
4.3mm~129mm (30x Optical zoom) |
| Max Aperture | F1.4 ~ F2.6 | F1.6 ~ F5.0 |
| Focus Control | Auto / Manual | |
| Angle of View | H: 54.1° ~ 3.2° | H: 65.1° ~ 2.34° |
| Close Focus Distance | 100mm~ 1000mm | |
| PTZ | ||
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180° | |
| Manual Control Speed | Pan: 0.1° ~160° /s; Tilt: 0.1° ~120° /s | |
| Preset Speed | Pan: 240° /s; Tilt: 200° /s | |
| Preset | 80(DH-SD), 255(Pelco-P/D) | |
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan, Auto Scan | |
| Speed Setup | Human-oriented focal length/ speed adaptation | |
| Power up Action | Auto restore to previous PTZ and lens status after power failure | |
| Idle Motion | Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period | |
| Protocol | DH-SD, Pelco-P/D (Auto recognition) | |
| IR Distance | 100m (2 near IR LED+ 4 far IR LED) | |
| Audio | ||
| Interface | 1 channel In | |
| Auxiliary Interface | ||
| RS485 | 1 | |
| Alarm | 2/1 channel In/Out | |
| General | ||
| Power Supply | AC 24V/3A (±10%) | |
| Power Consumption | 10.5W, 26W (IR on, Heater on) | |
| Working Environment | -40ºC ~ 60ºC / Less than 90% RH | |
| Ingress Protection | IP66 | |
| Vandal Resistance | N/A | |
| Dimensions | Φ204.7(mm) x 359.9(mm) | |
| Weight | 7.5kg | |
Dimensions
