POE-151

Double click on above image to view full picture

Zoom Out
Zoom In

POE-151

Availability: In stock

Product Code: 847690000015
Made in: Taiwan

Quick Overview

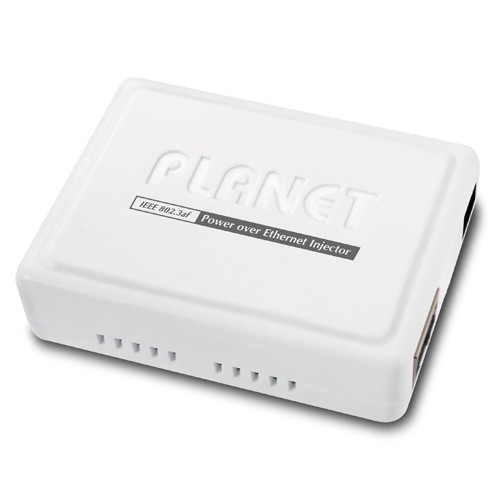

IEEE 802.3af Power Over Ethernet Injector


• Complies with IEEE 802.3af Power over Ethernet, IEEE 802.3/802.3u 10/100Base-TX
• Provides DC 48V power over RJ-45 Ethernet cable to device with Ethernet port
• LED power input indicators
• Distance up to 100 meters
• Auto-detects POE IEEE 802.3af equipment, protects devices from being damaged by incorrect installation
• Works with EIA568, category 5,4-pair cables for 10Base-T or 100Base-TX
• EMI standards complies with FCC, CE class B


Total Cost

Get Approval / Log-In for Pricing
OR
  • |
Toggle Block Social

Details

Ethernet Connector 2 x RJ-45( 1 for data + DC out, 1 for data in)
Ethernet Data Rate 10/100Mbps( vary on Ethernet device attached)
Input Voltage DC 48V, 0.4A
Number of devices can be powered 1
Ethernet Cable TIA/EIA-568, Category 5/5e cable
LED Indicator 1 x power, 1 x POE ready / in-use
Dimensions (W x D x H) 73 x 55 x 24 mm
EMI FCC Class B, CE mark
Standard Compliance IEEE 802.3 Ethernet,
IEEE 802.3u Fast Ethernet,
IEEE 802.3af Power over Ethernet.
