SPECIFICATION |
Model |

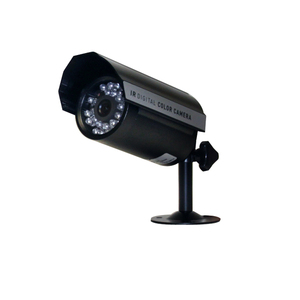

EBR-F100 |
Image Sensor |
1/3" Sony Super HAD |
Total Pixels |
811(H) x 508(V) |
Effective Pixels |
768(H) x 494(V) |
Scanning System |
2 : 1 Interlace 525 Lines / 60 Fields / 30 Frames |
Synchronization |
Internal / Line lock |
Scanning Frequency |
Horizontal : 15,734KHz / Vertical : 59.94Hz |
Horizontal Resolution |
420TV lines |
Min. Illumination |
0.1Lux (Color) / 0.0 Lux (IR On) |
Shutter Speed |
1/60~100,000 sec |
S / N Ratio (Y signal) |
48dB (AGC off) |
Video Output |
1.0Vp-p / 75 Ohms |
Back Light Compensation |
Yes |
Auto Gain Control (AGC) |
Yes |
White Balance |
ATW / AWB |
Electronic Shutter Speed |
Auto/ Normal(1/60sec ~ 1/120,000) / Flickerless |
Day & Night |
Digital D/N |
LENS |
Focal Length |
3.8mm Fixed |
Angle Field of View |
64.6 Deg |
ENVIRONMENTAL |
Operating Temperature |
-10 Deg C ~ +50 Deg C |
Operating Humidity |
20% ~ 90% RH |
MECHANICAL |
IR LEDs |
24IR LEDs (60ft) |
Ingress Protection |
IP 66 |
Dimensions |
148mm(L) x 70mm |
Weight |
200g |
ELECTRICAL |
Power Source |
12V DC |
Power Consumption |
500mA/10VA |
|
|
|
|
|
